EW1550 - EUROTIS CSST Piping Heatline DN15 x 50m

EW1550 - EUROTIS CSST Piping Heatline DN15 x 50m

Category: CSST AISI 304, DN12 - DN25

Part#: EW1550

DVGW certified for Drinking Water GW354 (15bar)

suitable for Solar Installations up to 250° C

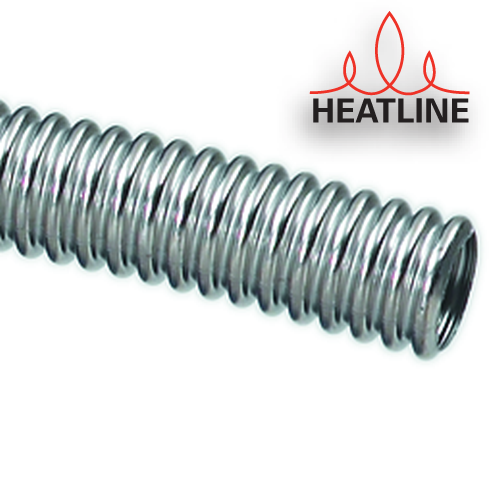

EUROTIS CSST Piping Heatline DN15 x 50m
for Solar and Heating applications only
Austenitic CSST, Material No. 1.4301 to EN 10028-7. AISI 304.
O.D.: 20,0 mm, I.D.: 15,8 mm, Wall thickness: 0,3 mm
Use union nut EV15 (3/4"), gaskets ED15, EPDM15 or GR15
Pack Qty. = 1 Roll

Usage - Produce a flat-sealing flange

Usage - Produce an O-Ring connection

Film - Produce a flat-sealing flange Film - Producing a Wall Bracket

Film - Produce an O-Ring connection

Example Applications – EUROTIS CSST Example Applications - LEIFELD EUROTIS CSST

Technical Data Sheet - download Technical Data Sheet - download

Documents
