EUROTIS CSST Gas AISI 316L - DN25 - EG2505 - EUROTIS CSST Gas AISI 316L - DN25 x 5m

« Back to EUROTIS CSST Gas AISI 316L - DN25
Print
Category: CSST Gas AISI 316L, DN12 - DN25
Part#: EG2505

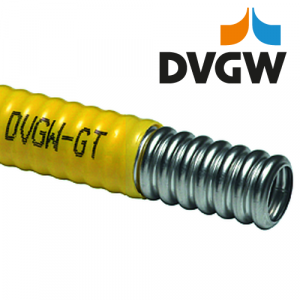

EUROTIS CSST DN25 x 5m
with 0,5mm LDPE yellow protective coating
DVGW: Drinking Water GW354 (15 bar) DVGW: Gas VP 616 (100 mbar)
Austenitic CSST, Material No. 1.4404 to EN 10088-2. AISI 316L.
O.D.: 33,0 mm, I.D.: 26,5 mm, Wall thickness: 0,3 mm
Use union nut EV25 (1.1/4"), gaskets ED25, EPDM25 or GR25
Pack Qty. = 1 Roll

Usage - Produce a flat-sealing flange    Usage - Produce a flat-sealing flange

Usage - Produce an O-Ring connection    Usage - Produce an O-Ring connection

Film - Produce a flat-sealing flange    Film - Produce a flat-sealing flange

Film - Produce an O-Ring connection    Film - Produce an O-Ring connection

Example Applications – EUROTIS CSST    Example Applications - EUROTIS CSST

Technical Data Sheet - download    Technical Data Sheet - download
