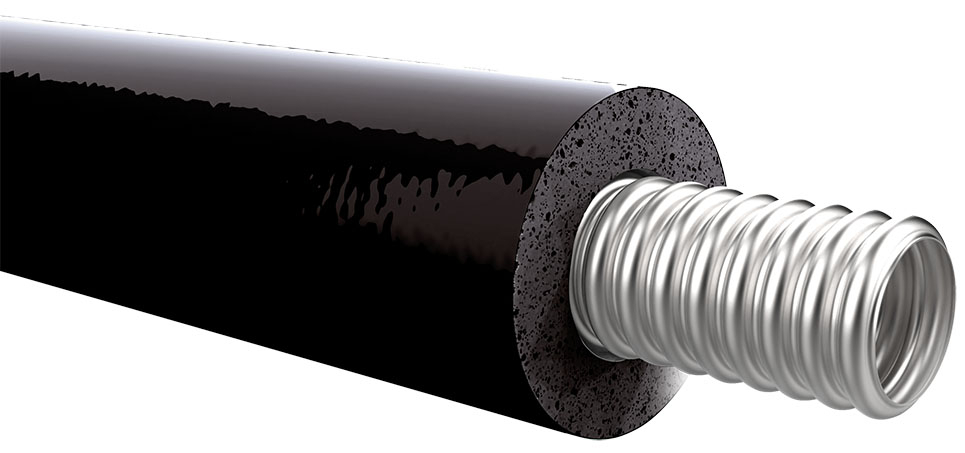

EUROTIS Euroklima CSST DN25
for heat pump systems and cold and/or hot water hydronic connections.
13 mm elastomer insulation (λ = 0,038 W/m K)
Austenitic CSST, Material No. 1.4301 to EN 10028-7. AISI 304.
O.D.: 33,0 mm, I.D.: 26,5 mm, Wall thickness: 0,3 mm
Use union nut EV25 (1.1/4"), gaskets ED25 or GR25
EEK2525: Pack Qty. = 1 m
EEK25: Pack Qty. = 1 m (max 25 m)
Usage - Produce a flat-sealing flange
Usage - Produce an O-Ring connection
Film - Produce a flat-sealing flange
Film - Produce an O-Ring connection
Example Applications - LEIFELD EUROTIS CSST
Technical Data Sheet - download
