Product Usage - CSST Protective Sleeve

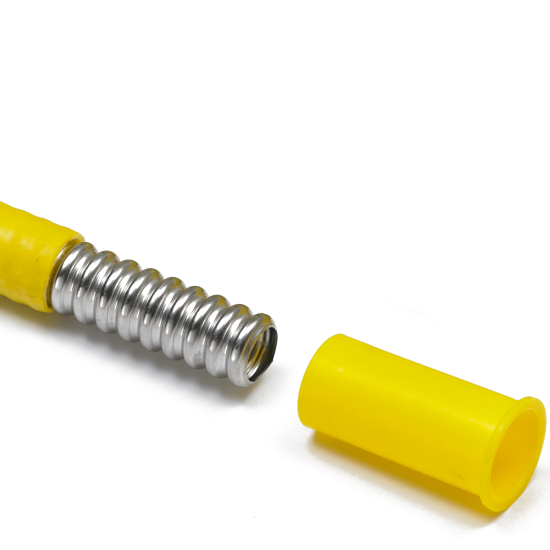

Remove the last 9 corrugations of the plastic protection with a sharp knife.

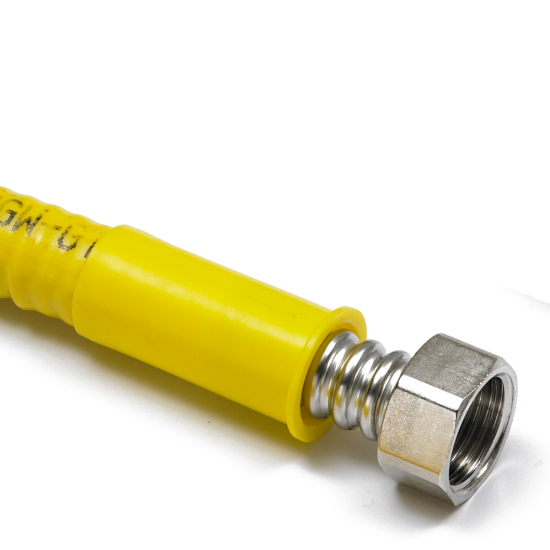

Slide the sleeve and the nut over the pipe and create the flange.

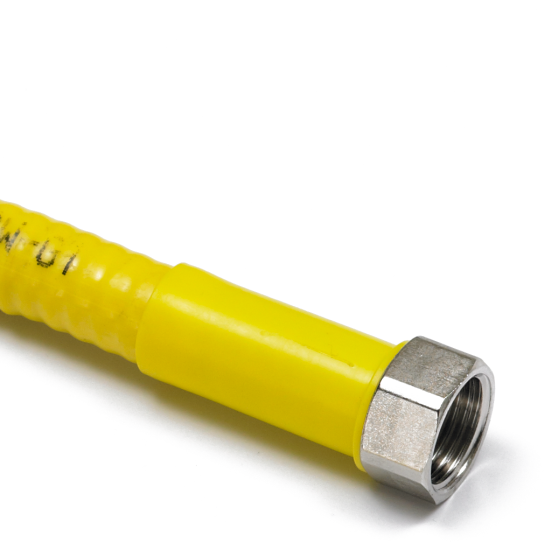

After fitting a sealing washer and tightening the nut onto the opposing fitting, slide the protective sleeve forward to protect the bare pipe.
