Product Usage - Backing Plate

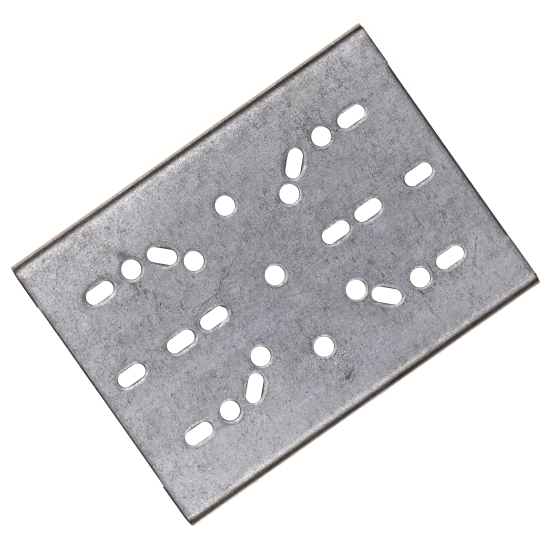

LEIFELD Backing Plate Part# 1280.
LEIFELD Backing Plate
Part# 1280.

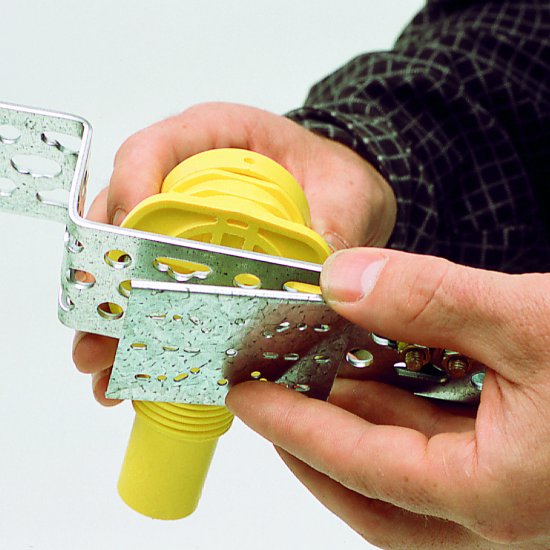

Fit a wide variety of fittings to the LEIFELD Strap.
Fit a wide variety of fittings to the LEIFELD Strap.

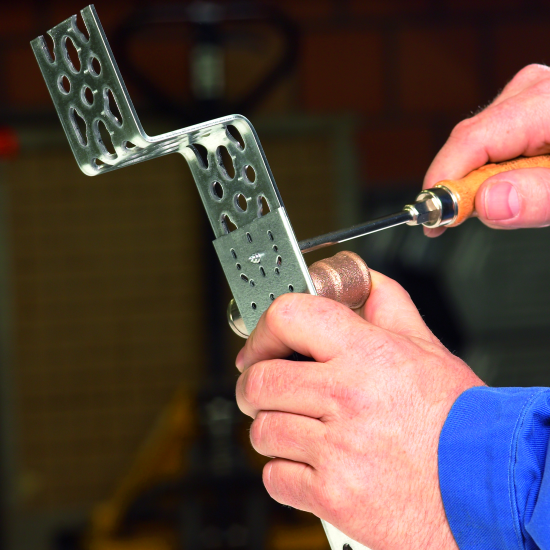

The LEIFELD Backing Plate ensure that fittings are mounted centrally ...
The LEIFELD Backing Plate ensure that fittings are mounted centrally ...

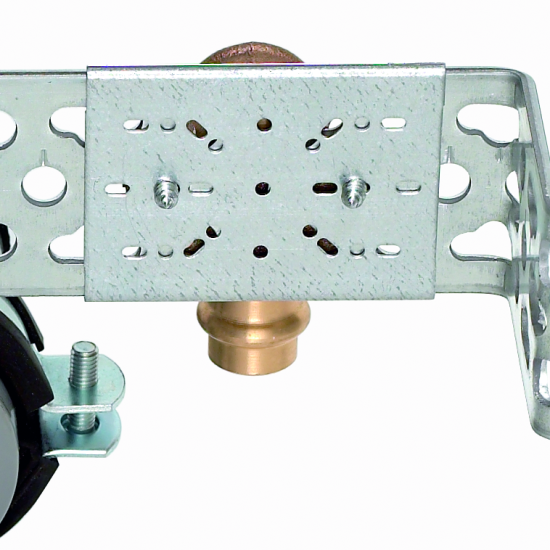

and securely (here with self-tapping screws 4,8 x 116 mm Part# 1075) onto the LEIFELD Strap.
and securely (here with self-tapping screws 4,8 x 116 mm Part# 1075) onto the LEIFELD Strap.

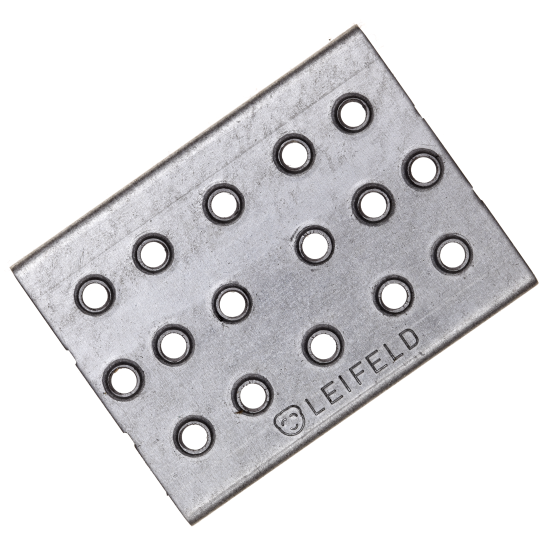

LEIFELD Threaded Backing PlatePart# 1279.
LEIFELD Threaded Backing Plate
Part# 1279.

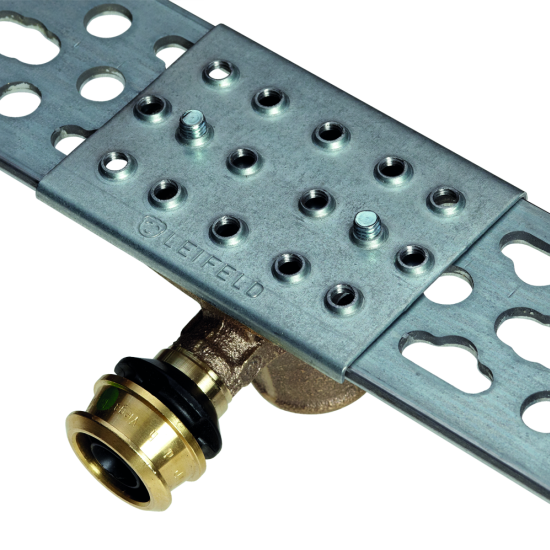

Securing a wall plate elbow onto LEIFELD Strap with Panhead screws M5 x 16mm Part# 1034.
Securing a wall plate elbow onto LEIFELD Strap with Panhead screws M5 x 16mm Part# 1034.

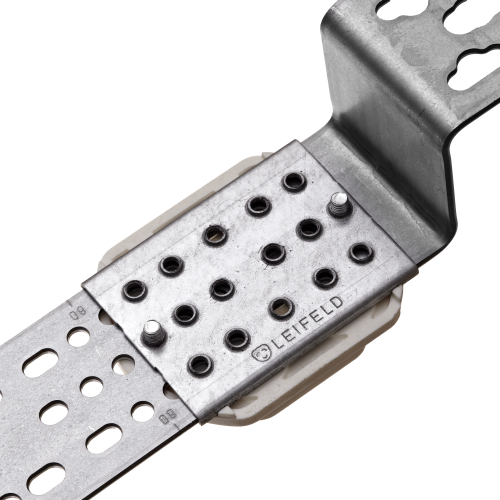

Torsion proof fitting of the LEIFELD Sound-Shield Part# 1290 onto a LEIFELD MultiMount Part# 1250.
Torsion proof fitting of the LEIFELD Sound-Shield Part# 1290 onto a LEIFELD MultiMount Part# 1250.
