Product Usage - Leifeld Strap

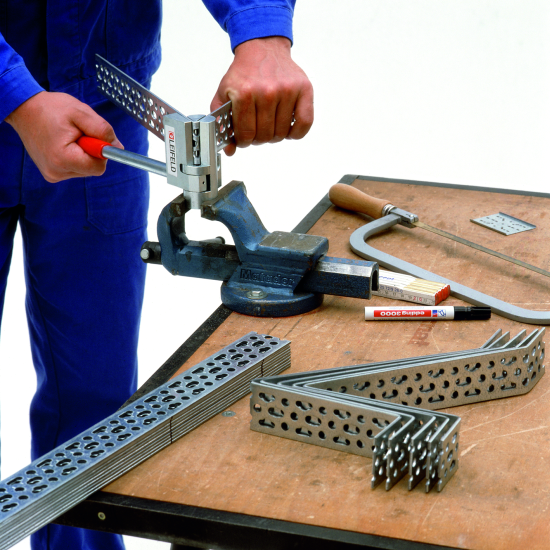

Mount the pliers in a vice...
Mount the pliers in a vice...

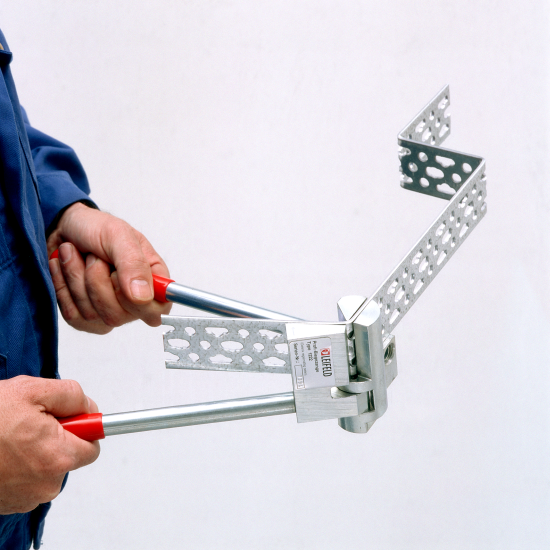

... or use freehand.
... or use freehand.

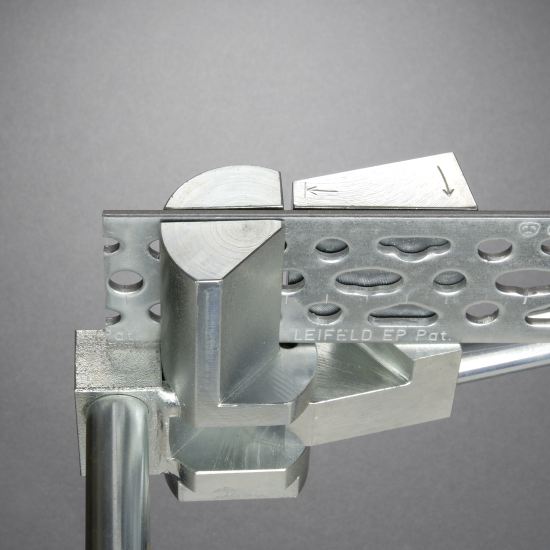

An example wall bracket - width50mm
An example wall bracket - width
50mm

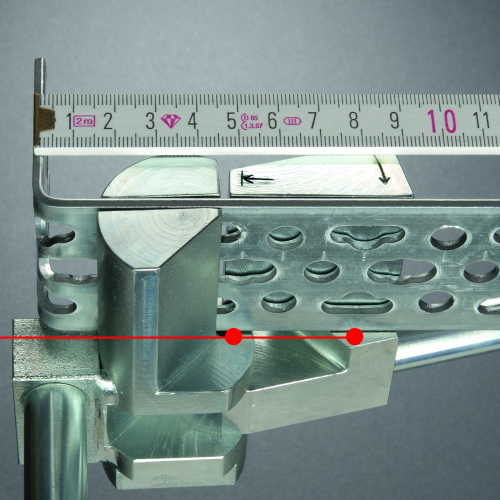

To produce accurate angles, ensure that the Strap rests on these surfaces.
To produce accurate angles, ensure that the Strap rests on these surfaces.

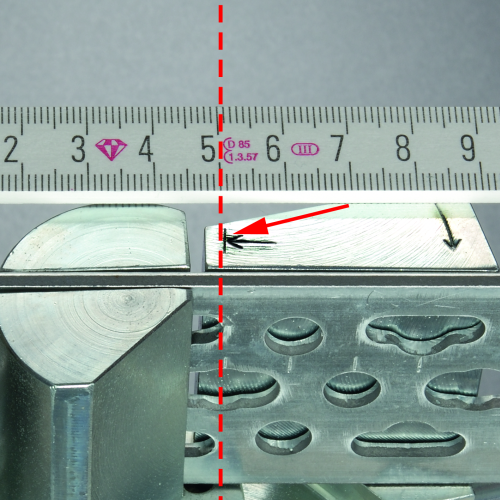

This mark indicates the outside edge of the finished bracket.
This mark indicates the outside edge of the finished bracket.

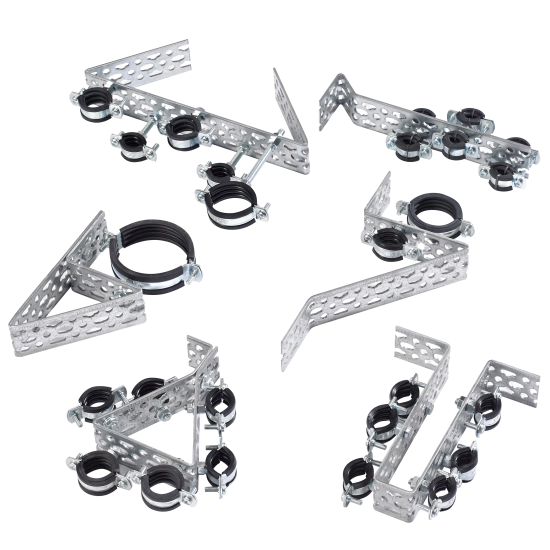

Quickly and simply produce brackets and wall mountings in a variety of dimensions.
Quickly and simply produce brackets and wall mountings in a variety of dimensions.

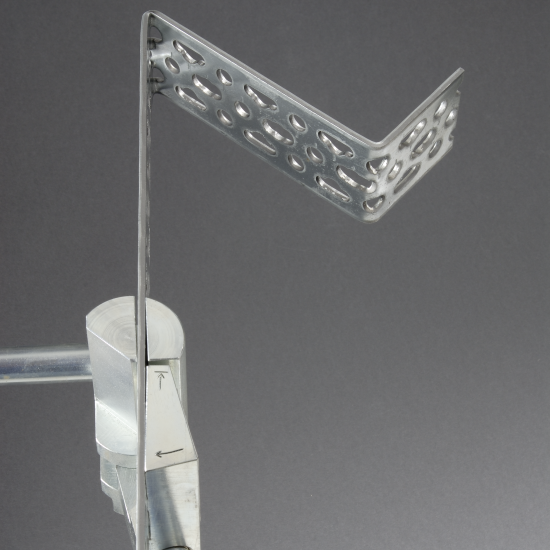

Producing a wall-bracket with an angle of 135°.
Producing a wall-bracket with an angle of 135°.

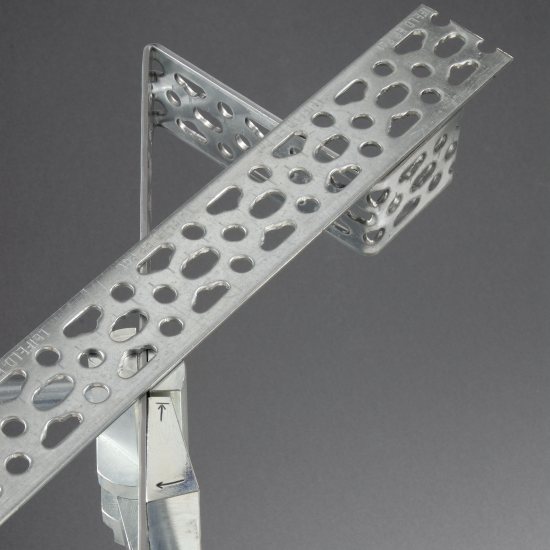

Use a piece of Strap ..
Use a piece of Strap ..

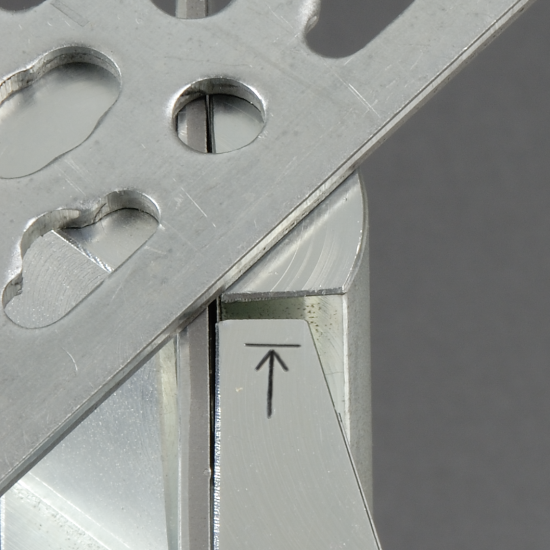

.. to help locate the exact point to bend.
.. to help locate the exact point to bend.

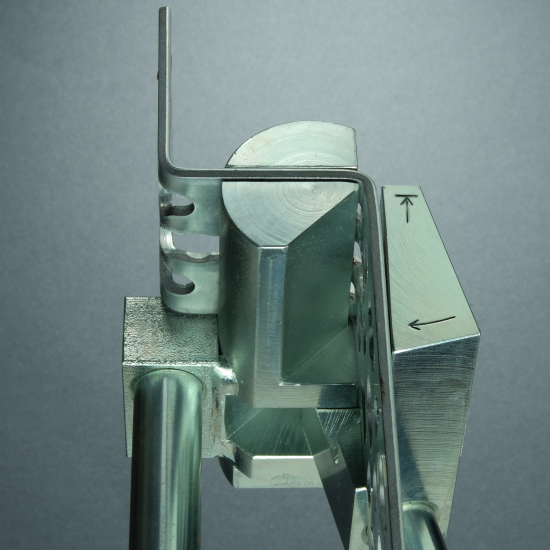

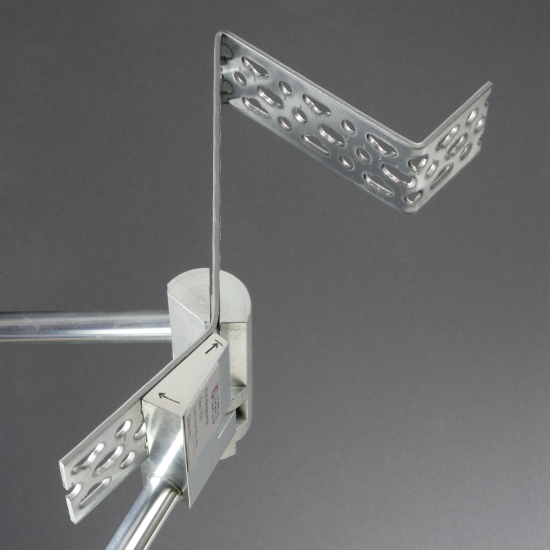

Bend the final 45° angle and the wall-bracket is complete!
Bend the final 45° angle and the wall-bracket is complete!
